Name: Indoor P5 SMD3528 3 In 1 Full Color Led Display Screen
Detailed:

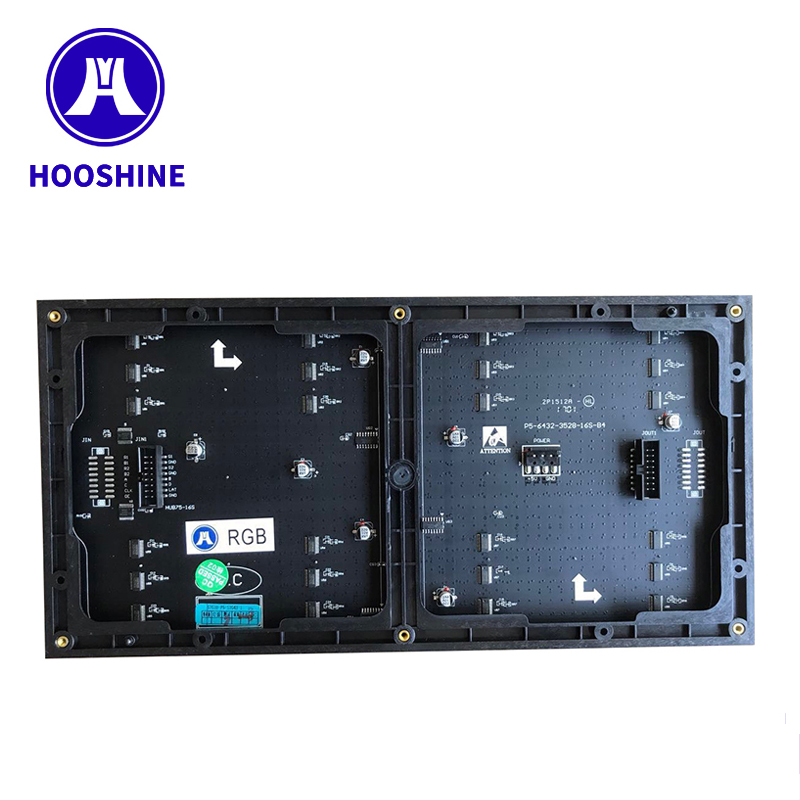

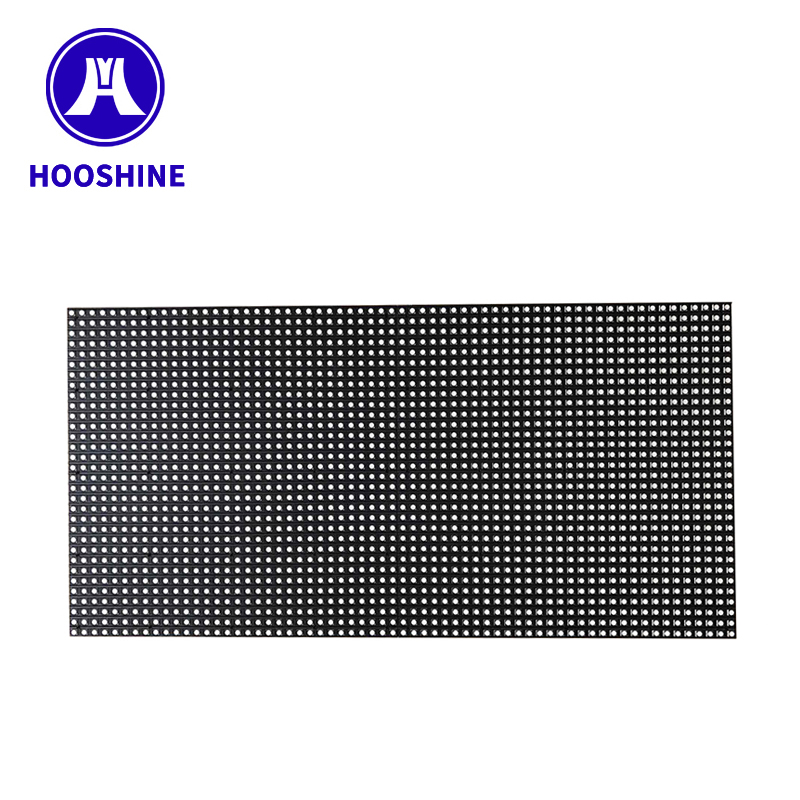

                                                  P5 SMD3528 Led Indoor  Full Color Module

Item

Parameter

Unit

Pixel Pitch

5

mm

Resolution of Module

64×32

dots

Module Size

320×160

mm

Module Weight

0.24

kg

Pixel Configuration

                             SMD3528 1R1G1B

Chip Brand of LEDs

                             Silan/Epistar/Cree/Nichia

Pixel Density

40,000

dots/sqm

Brightness (White Balance)

2000

nits(cd/sq.m)

Red Wavelength

620-625

nm

Green Wavelength

520-525

nm

Blue Wavelength

470-475

nm

Scan Mode

                                         1/8 Scan or 1/16 Scan optional

Viewing Distance

3--35

M

Best View Distance

5--15

M

Viewing Angle-Horizontal

120

deg.

Viewing Angle-Vertical

120

deg.

Module Maximum Power

25

W

Max. Power Consumption

1,000

W/sq.m

Avg. Power Consumption

300

W/sq.m

Working Voltage

                                   5V 40A

Power Supply

                               AC 110/220V

Refresh Rate

3,000

Hz/S

Frame Rate

60

Hz/S

Gray Scale

                           4096 grades gray

Display Color

                           256*256*256

Display Function

                   Text,news,advertising,flash,animation

Input Signal

     RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.

Luminance Degradation

Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°C.

Defective Dot Rate

                                 <0.0001

Life Span

100,000

hours

MTBF

>5,000

hours

Storage Temperature

45

°C

Working Temperature

         -20 -- +60

°C

Working Humidity

                                   10-90%RH

Control System

Synchronization or Asynchronization

Quality Certificate

ECE,RoHS,TUV,ISO9001:2008

Warrenty

2 Years

Working Environment

Indoor
