Name: Outdoor P16 DIP Full Color Led Display
Detailed:
  ,,

   P16 Outdoor Led Display Module

Pixel Information

Pixel Pitch

16mm

Pixel Density

3,906 Pixels/m2

 Pixel Configuration

1R1G1B

LEDs Brand

Red:  Silan/ Epistar / Cree

Green:Silan/ Epistar / Cree

Blue: Silan/ Epistar / Cree

LEDs Wavelength

Red:    615 nm - 625 nm

Green:  520 nm - 535 nm

Blue:   465 nm - 475 nm

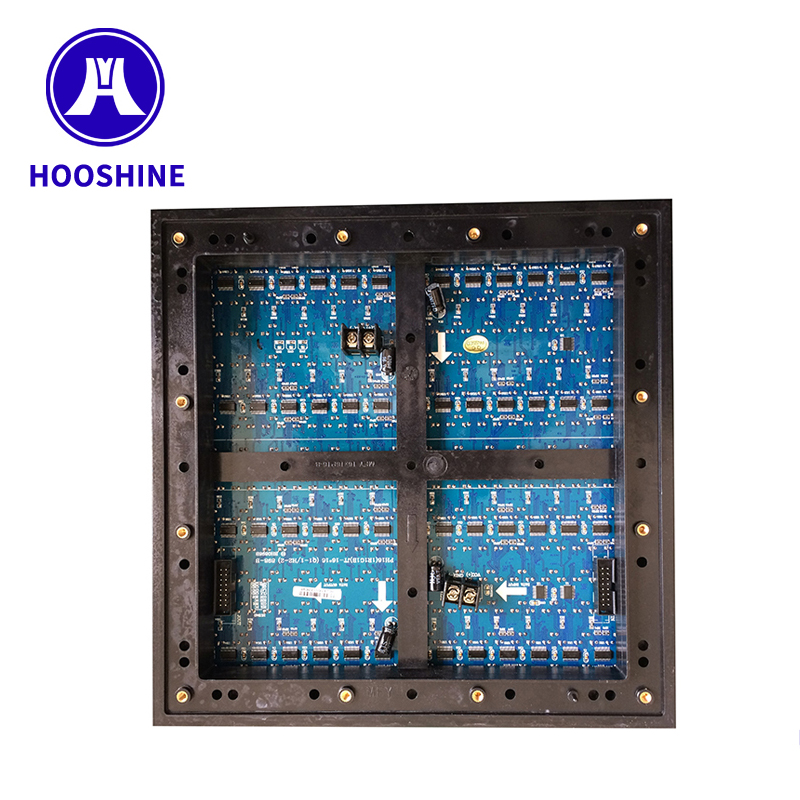

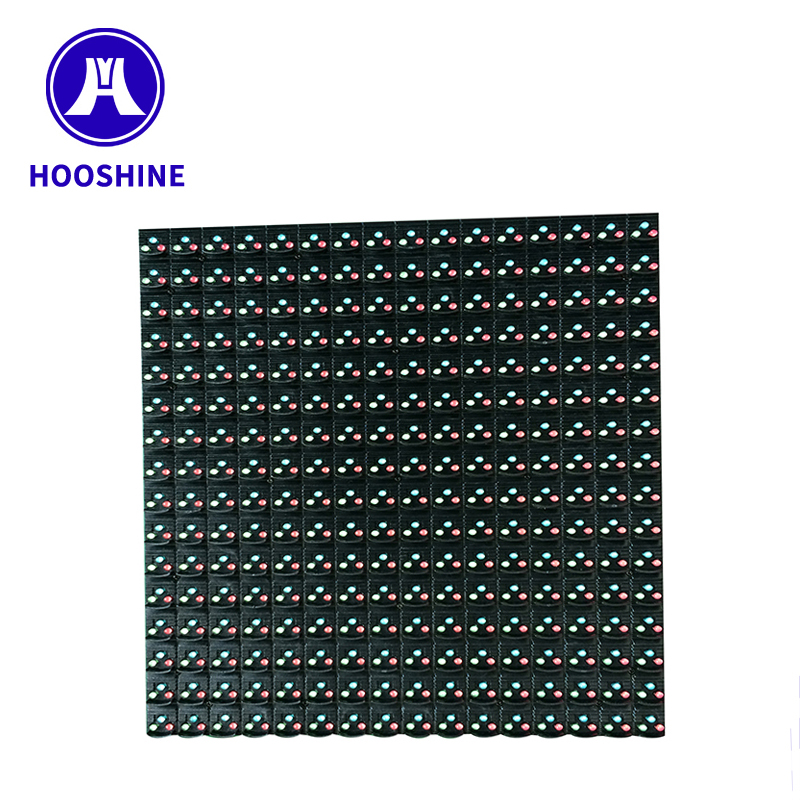

LED Module

Module Size

256 mm (Width) × 256 mm(Height) = 0.065536/m²

Module Resolution

16 pixels(Width) × 16pixels(Height) = 256pixels

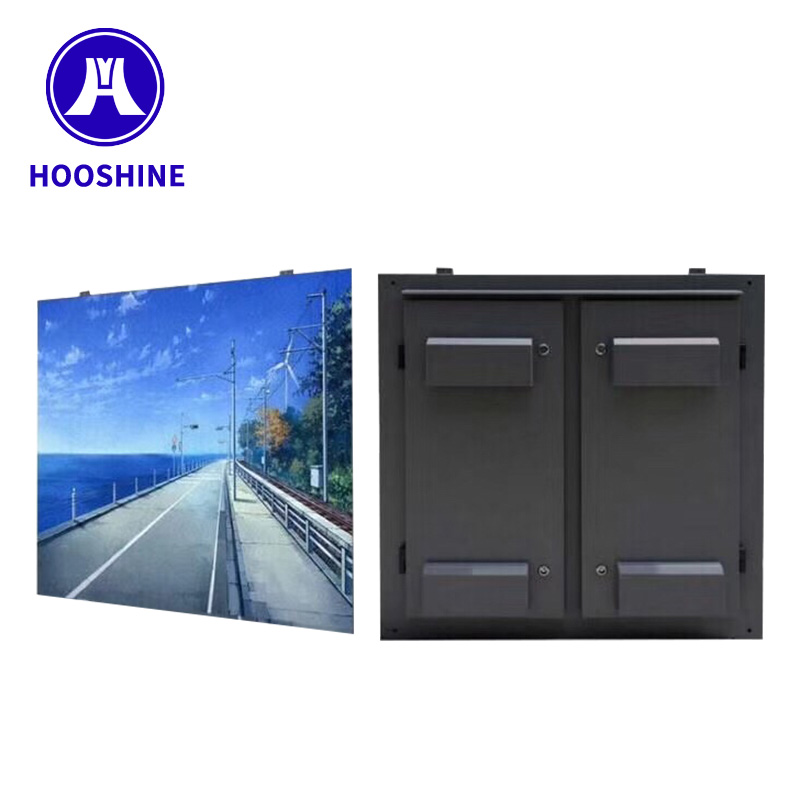

LED Cabinet

Cabinet Size

1024 mm(Width) × 1024mm(Height) = 1.05/m²

Cabinet Resolution

64 Pixels(Width) × 64 Pixels(Height) = 4096 Pixels

Total QYT Module Per Cabinet

4 Modules(Width) × 4 Modules(Height) = 16 Module

Cabinet Weight

46 kgs

Cabinet Material

Steel or aluminum

Power

Input Voltage

110-240V AC, 50/60Hz

Max Power Consumption

1000 Watt/ m²

Avg. Power Consumption

500  Watt/ m²

Viewing

Brightness

7000cd/m2

Brightness Uniformity

Luminance Discrepancy < 4%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 0.5 mm

Best Viewing Angle

Horizontal:120°/ Vertical:60°

Viewing Distance

15-200 Meters

Ambint Conditions

Temperature Range

Storage:-40 °c  to +85°c.; Working:-20°c to +60°c

Operating Humidity

10%-90%RH

Ingression Protection Grade

Front Side: IP65 (Resist spraying of water gun directly);

Back Side: IP54  (Resist Rain)

Processing

Scanning Mode

Real Pixel , Static Scan

Refresh Frequency

180HZ-600HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Supported Networking

Through LAN/WAN, RS 232/RS485

Controller

Linsn, Xixun, DB-star, Nova-star,etc.

Other

Life Span

80,000 - 100,000 Hours
