Name: Outdoor P6 SMD Full Color Led display
Detailed:


P6 Outdoor Led Display

Pixel Information

Pixel Pitch

 6mm

Technology

SMD

Pixel Density

27777 Pixels/m2

 Pixel Configuration

1R1G1B

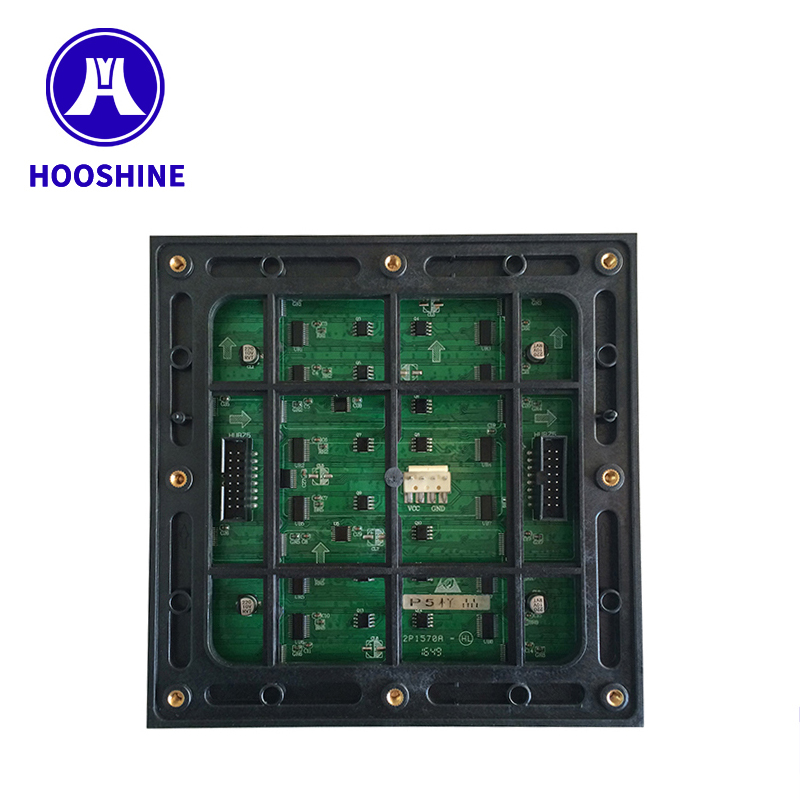

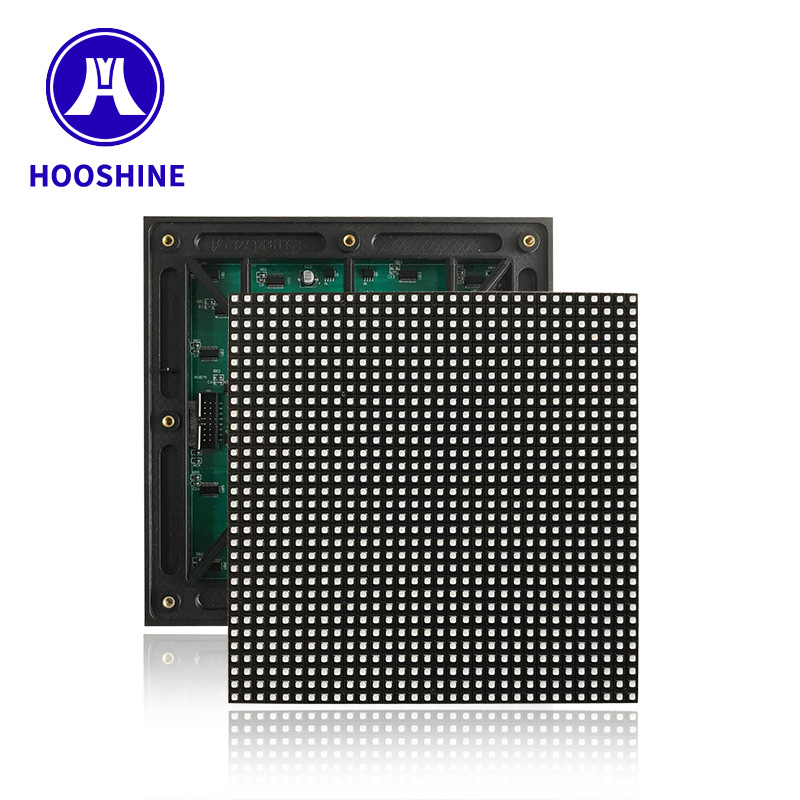

LED Module

Module Size

192 mm (Width) × 192 mm(Height) = 0.03684/m2

Module Resolution

32 pixels(Width) × 32 pixels(Height) = 1024 pixels

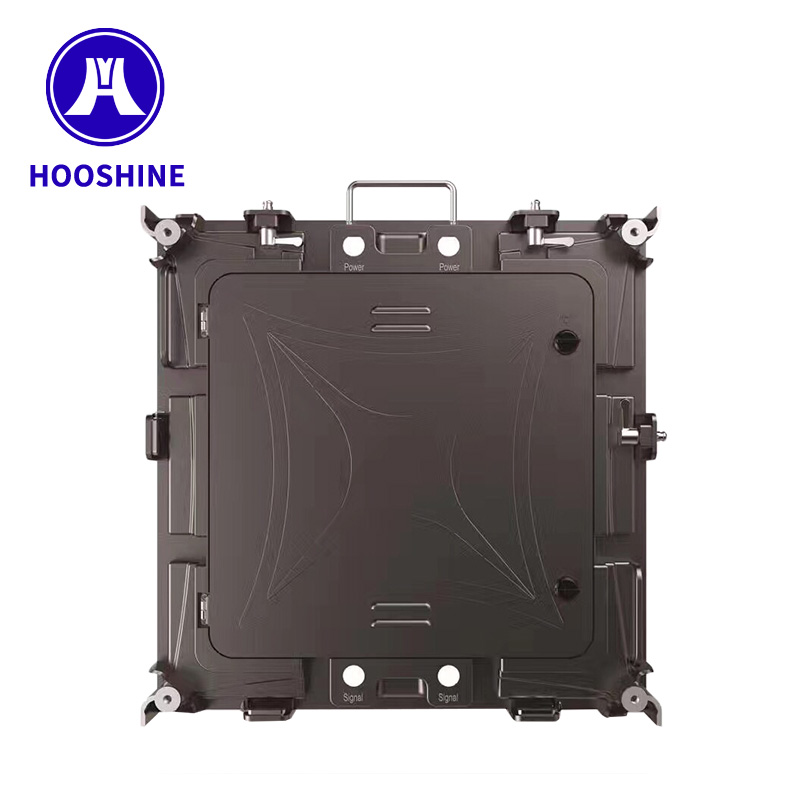

LED Cabinet

Cabinet Size

576 mm(Width) × 576 mm(Height) = 0.331776/m2

Cabinet Resolution

128 Pixels(Width) × 128 Pixels(Height) = 16384 Pixels

Total QYT Module Per Cabinet

3 Modules(Width) × 3 Modules(Height) = 9 Modules

Cabinet Weight

2.5kg

Cabinet Material

Steel or aluminum

Power

Input Voltage

100-240V AC, 50/60Hz

Max Power Consumption

400 Watt/m2

Avg. Power Consumption

200  Watt/m2

Viewing

Brightness

1000cd/m2

Brightness Uniformity

Luminance Discrepancy < 5%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 1 mm

Best Viewing Angle

Horizontal:160°,Vertical:160°

Viewing Distance

5 - 300 meters

Ambint Conditions

Temperature Range

Storage:-40deg. to +85deg.; Working:-20deg. to +60deg

Operating Humidity

10%90%RH

Ingression Protection Grade

Front IP65,Back IP54

Processing

Scanning Mode

1/8 Scan

Refresh Frequency

180HZ-600HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Supported Networking

Through LAN/WAN, RS 232/RS485

Other

Life Span

50,000 - 100,000 Hours

Software

Nova Star
