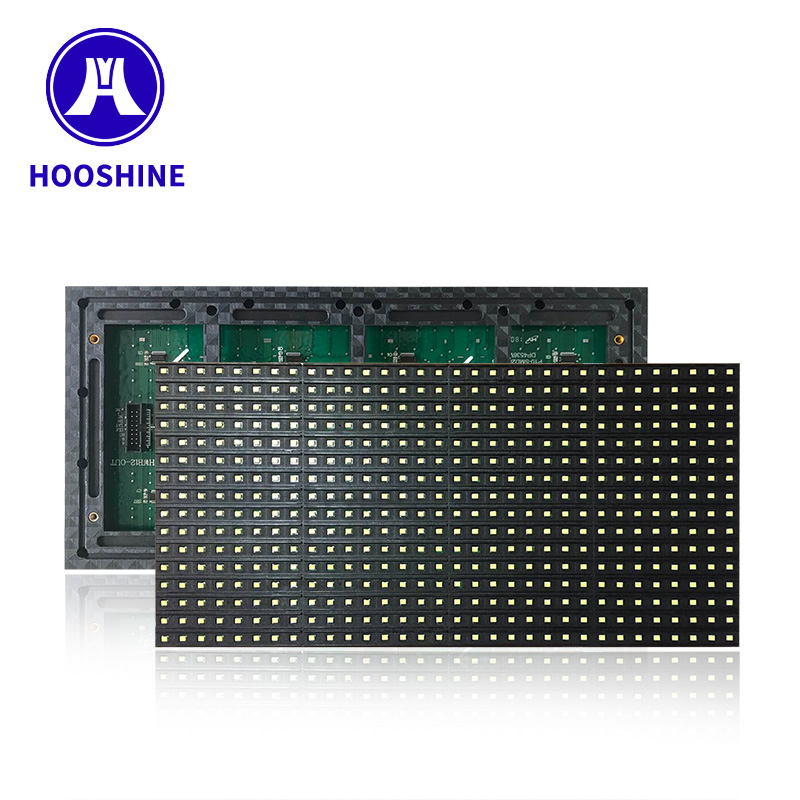

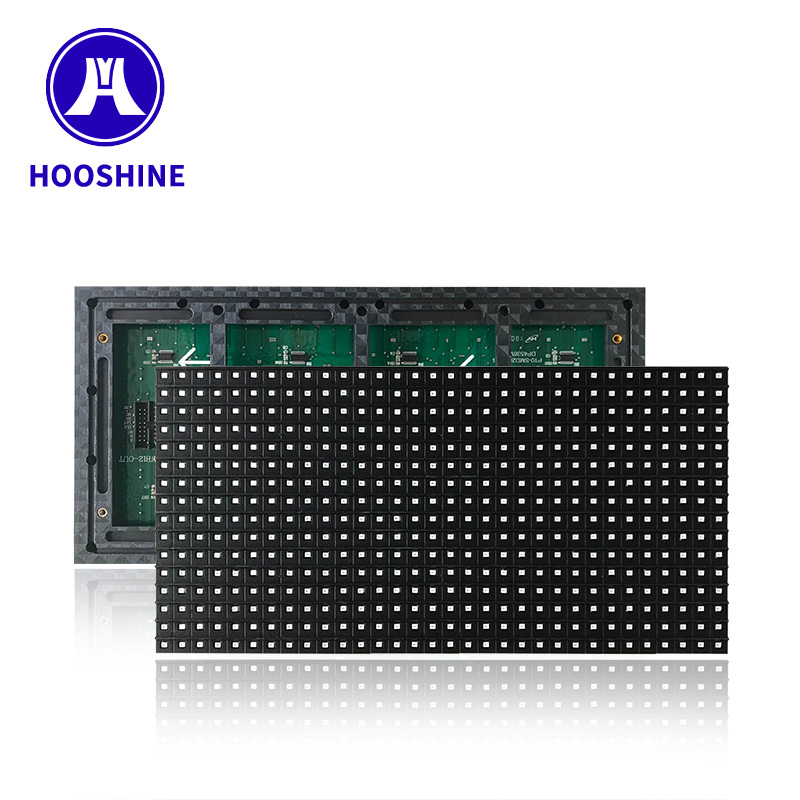

Name: P10 SMD red color led module
Detailed:

P10  Outdoor Single Color Module

Item

Unit

Parameter

Pixel Pitch

mm

10

Resolution of Module

dots

32×16

Module Size

mm

320×160

Led Package

                     SMD Lamp

Pixel Configuration

                     1R

Chip Brand of LEDs

                     Silan/Epistar/Cree/Nichia

Module Weight

kgs/pc

0.64-0.68

Pixel Density

dots/sqm

10,000

Brightness (White Balance)

nits(cd/sq.m)

2600

Red Wavelength

nm

620-625

Green Wavelength

nm

520-525

Blue Wavelength

nm

470-475

Scan Mode

                             1/4 Scan

Viewing Distance

M

5~100

Best View Distance

M

12.5~33m

Viewing Angle-Horizontal

deg.

80

Viewing Angle-Vertical

deg.

60

Module Maximum Power

W

20

Max. Power Consumption

W/sq.m

400W/m2

Avg. Power Consumption

W/sq.m

100~250

Working Voltage

                               40A 5V

Power Supply

                           AC 110/220V

Waterproof Grade

                             IP65

Refresh Rate

Hz/S

300

Frame Rate

Hz/S

60

Gray Scale

                             256 grade

Display Function

                             Texts

Input Signal

                       RS232/485, USB,Ethernet

Luminance Degradation

Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°C.

Defective Dot Rate

                               <0.0001

Life Span

hours

100,000

MTBF

hours

>5,000

Storage Temperature

°C

45

Working Temperature

°C

60

Working Humidity

10%-90%RH

Control System

Asynchronous or Synchronous

Quality Certificate

ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008

Warrenty

1 Years

Working Environment

Outdoor

Note: The above parameter is just for your reference. It can be changed according to customers' requirements.
