P5 Outdoor Led Display |
|
|
|
|
Pixel Information |
Pixel Pitch |
5mm |
|
|
Technology |
SMD |
|
|
Pixel Density |
40000 Pixels/m2 |
|
|
Pixel Configuration |
1R1G1B |
|
|

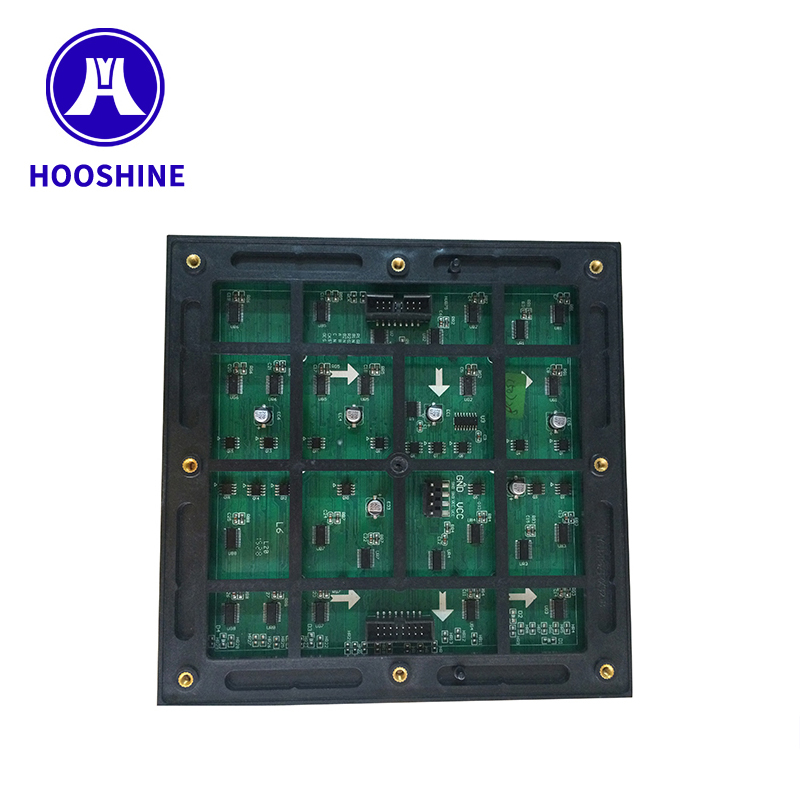

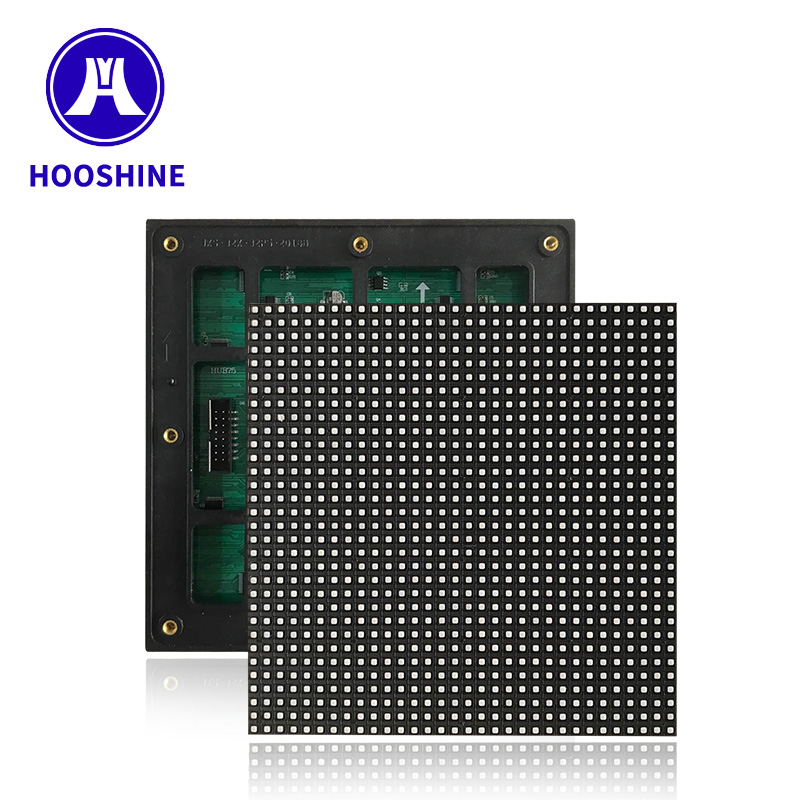

LED Module |
Module Size |
160 mm (Width) × 160 mm(Height) |
|
|
Module Resolution |
32 pixels(Width) × 32 pixels(Height) |
|
|

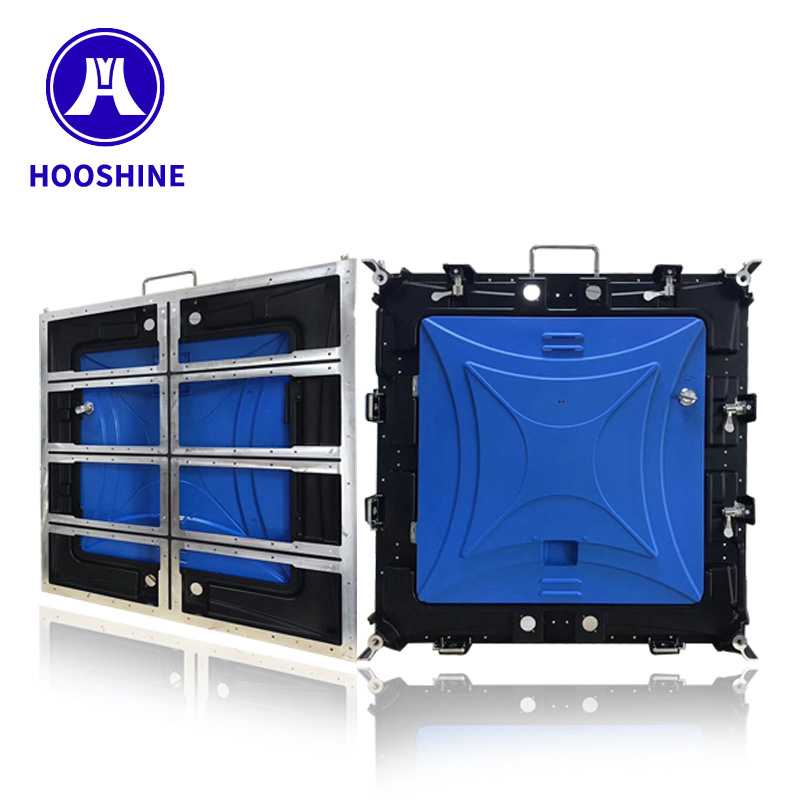

LED Cabinet |
Cabinet Size |
960 mm(Width) × 960 mm(Height) |
|
|
Cabinet Resolution |
192 Pixels(Width) × 192 Pixels(Height) |
|
|
Total QYT Module Per Cabinet |
6Modules(Width) × 6 Modules(Height) = 36 Modules |
|
|
Cabinet Weight |
2.5kg |
|
|
Cabinet Material |
Steel or aluminum |
|
|
Power |
Input Voltage |
100-240V AC, 50/60Hz |
|
|
Max Power Consumption |
400 Watt/m2 |
|
|
Avg. Power Consumption |
200 Watt/m2 |
|
|
Viewing |
Brightness |
≥1000cd/m2 |
|
|
Brightness Uniformity |
Luminance Discrepancy < 5% |
|
|
Colors |
16777216 |
|
|
Grey Scale(Level) |
4096 |
|
|
Slot Between Neighboring Modules |
< 1 mm |
|
|
Best Viewing Angle |
Horizontal:160°,Vertical:160° |
|
|
Viewing Distance |
5 - 300 meters |
|
|
Ambint Conditions |
Temperature Range |
Storage:-40deg. to +85deg.; Working:-20deg. to +60deg |
|
|
Operating Humidity |
10%90%RH |
|
|
Ingression Protection Grade |
Front IP65,Back IP54 |
|
|
Processing |
Scanning Mode |
1/8 Scan |
|
|
Refresh Frequency |
1920HZ/3840HZ |
|
|
Signal Input |
DVI, Composite Video for Live Video |
|
|
Supported Networking |
Through LAN/WAN, RS 232/RS485 |
|
|
Other |
Life Span |
50,000 - 100,000 Hours |
|
|
Software |
Nova Star |
