Name: P5.95 Outdoor full color
Detailed:

P5.95 Outdoor Led Display

Pixel Information

Pixel Pitch

5.95mm

Technology

SMD

Pixel Density

43264 Pixels/m2

Pixel Configuration

1R1G1B

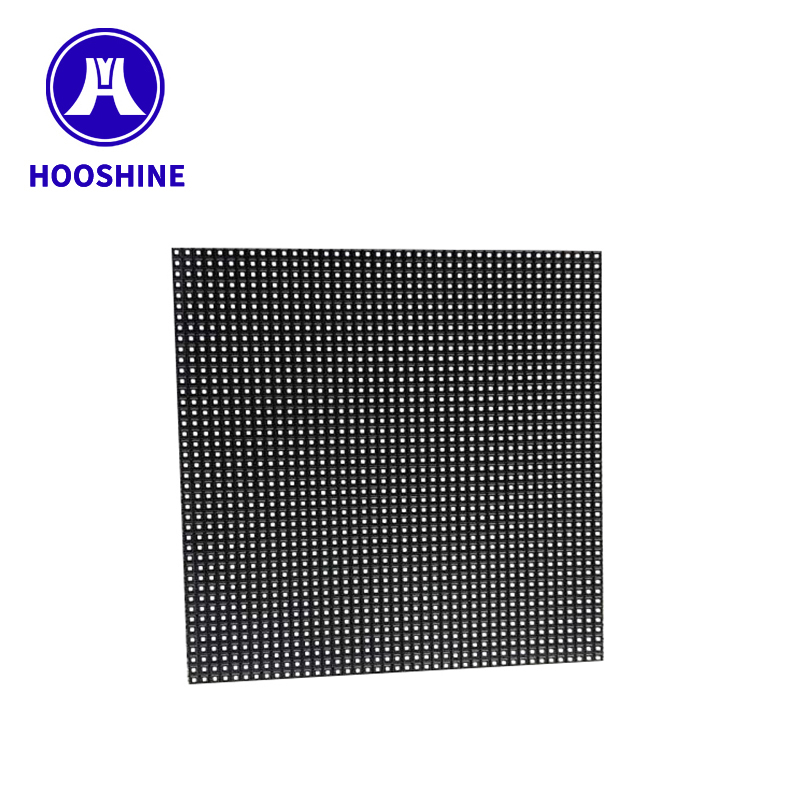

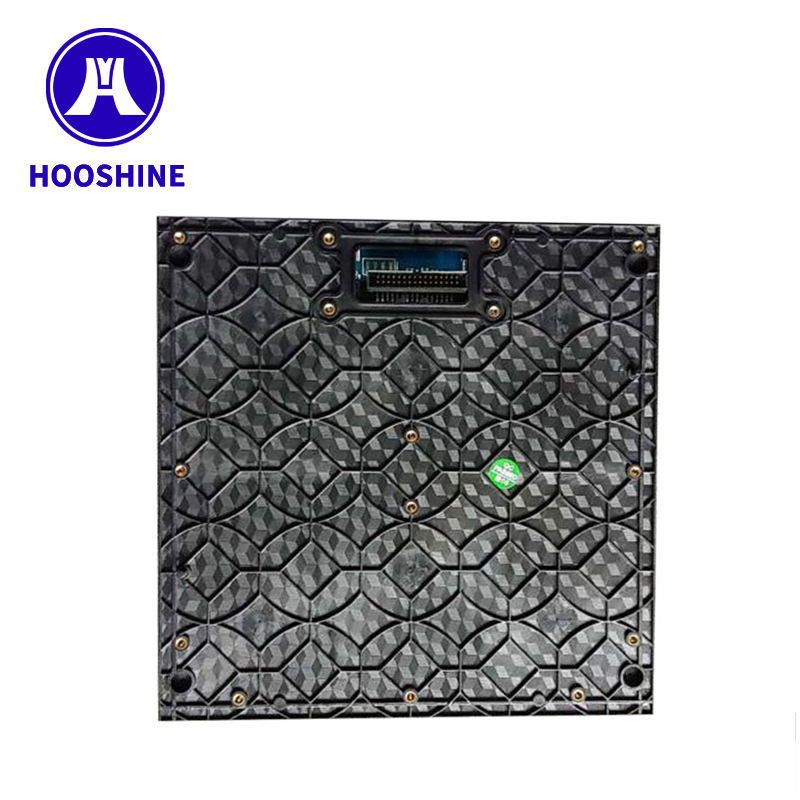

LED Module

Module Size

250mm (Width) × 250 mm(Height)

Module Resolution

42pixels(Width) × 42 pixels(Height)

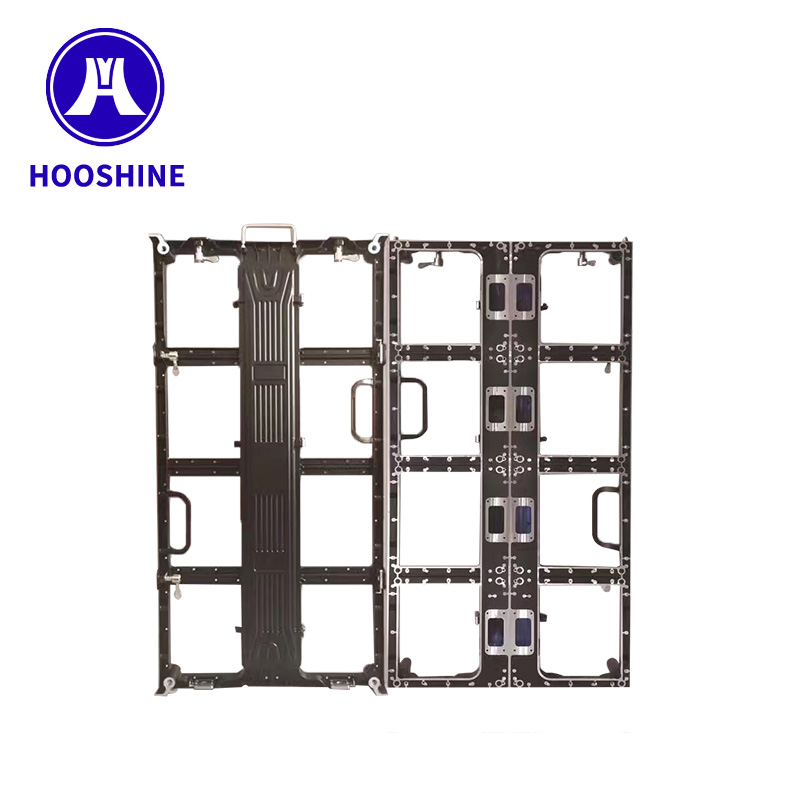

LED Cabinet

Cabinet Size

500mm(Width) × 500 mm(Height)

Cabinet Resolution

84Pixels(Width) × 84Pixels(Height)

Total QYT Module Per Cabinet

2Modules(Width) × 2Modules(Height) = 4 Modules

Cabinet Weight

2.5kg

Cabinet Material

Steel or aluminum

Power

Input Voltage

100-240V AC, 50/60Hz

Max Power Consumption

400 Watt/m2

Avg. Power Consumption

200 Watt/m2

Viewing

Brightness

≥6500cd/m2

Brightness Uniformity

Luminance Discrepancy < 5%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 1 mm

Best Viewing Angle

Horizontal:160°,Vertical:160°

Viewing Distance

5 - 300 meters

Ambint Conditions

Temperature Range

Storage:-40deg. to +85deg.; Working:-20deg. to +60deg

Operating Humidity

10%90%RH

Ingression Protection Grade

Front IP65,Back IP54

Processing

Scanning Mode

1/8 Scan

Refresh Frequency

1920HZ/3840HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Supported Networking

Through LAN/WAN, RS 232/RS485

Other

Life Span

50,000 - 100,000 Hours

Software

Nova Star
