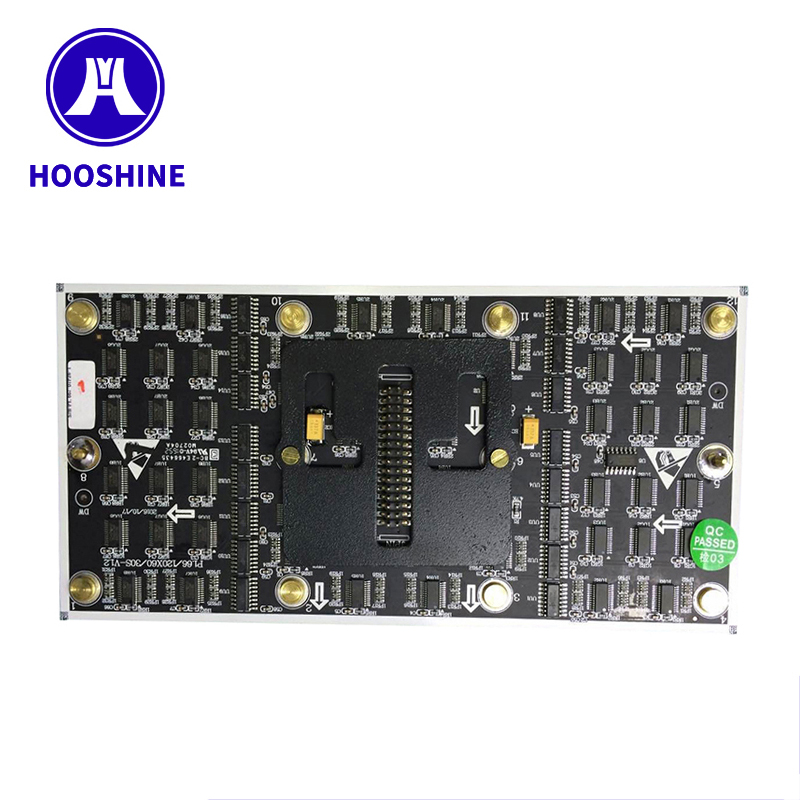

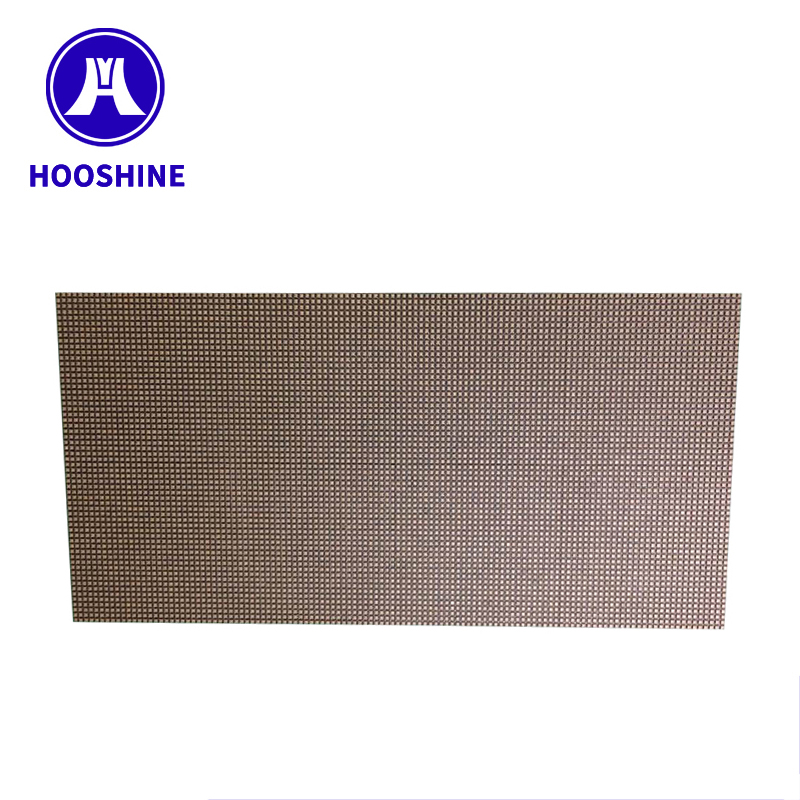

Name Indoor P1.667 LED module
Detailed
indoor full color P1.667 SMD2121 led module
Pixel Information Pixel Pitch  1.667mm
Technology SMD1010
Pixel Density 359856 Pixels/m2
 Pixel Configuration 1R1G1B
LED Module Module Size 200 mm (Width)  100 mm(Height)
Module Resolution 120 pixels(Width)  60 pixels(Height)
LED Cabinet Cabinet Size 512mm(Width)  512 mm(Height)
Cabinet Resolution 400Pixels(Width) 300 Pixels(Height)
Total QYT Module Per Cabinet 2 Modules(Width) 2 Modules(Height)
Cabinet Weight 2.2kg
Cabinet Material Steel or aluminum or  Magnesium
Power Input Voltage 100-240V AC, 50/60Hz
Max Power Consumption 1200 Watt/m2
Avg. Power Consumption 600  Watt/m2
Viewing Brightness ~1000cd/m2
Brightness Uniformity Luminance Discrepancy < 5%
Colors 16777216
Grey Scale(Level) 4096
Slot Between Neighboring Modules < 1 mm
Best Viewing Angle Horizontal:160,Vertical:160
Viewing Distance  5 - 300 meters
Ambint Conditions Temperature Range  Storage:-40deg. to +85deg.; Working:-20deg. to +60deg
Operating Humidity 10%90%RH
Ingression Protection Grade Front
Processing Scanning Mode 1/32Scan
Refresh Frequency 180HZ-600HZ, Adjustable
Signal Input DVI, Composite Video for Live Video
Supported Networking Through LAN/WAN, RS 232/RS485
Other Life Span 50,000 - 100,000 Hours
