| indoor full color P4 led module |
|
|
| Pixel Information |
Pixel Pitch |
4mm |
| Technology |
SMD |
| Pixel Density |
62500Pixels/m2 |
| Pixel Configuration |
1R1G1B |

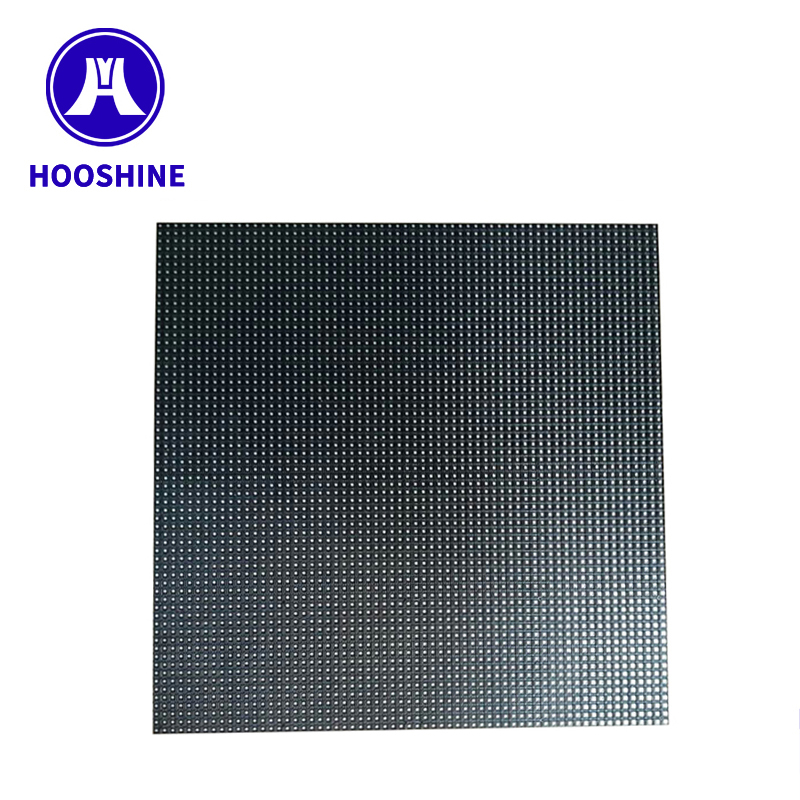

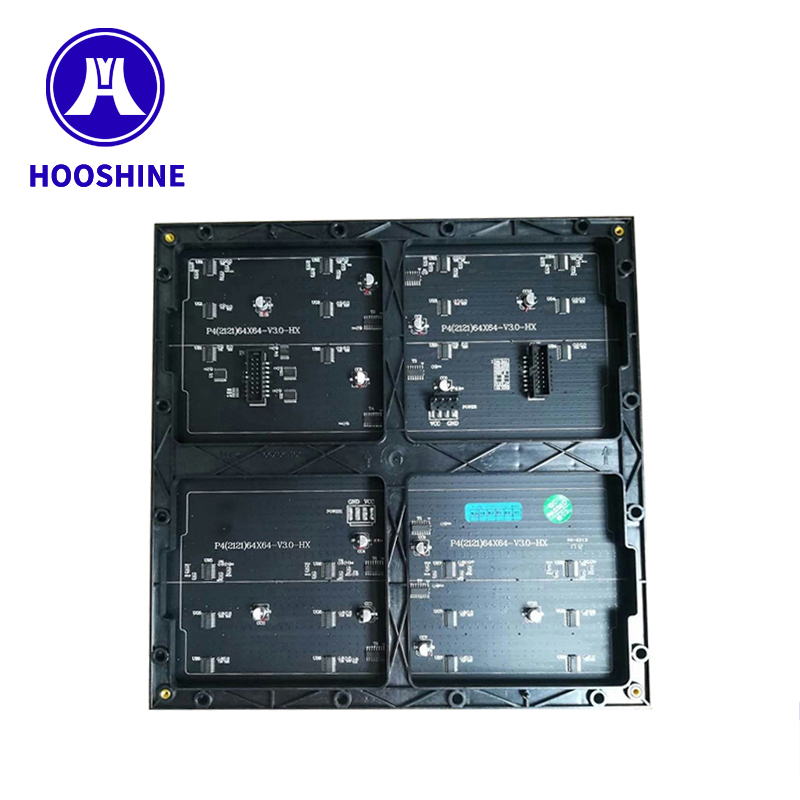

| LED Module |
Module Size |
256 mm (Width) ¡Á 256mm(Height) |
| Module Resolution |
64 pixels(Width) ¡Á 64pixels(Height) |

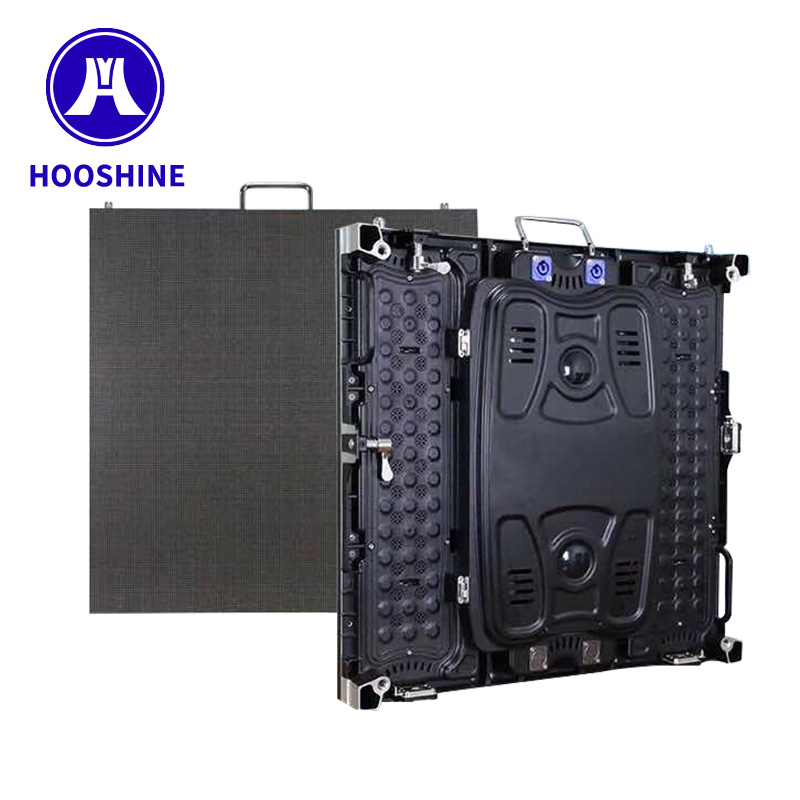

| LED Cabinet |
Cabinet Size |
512mm(Width) ¡Á 512 mm(Height) |
| Cabinet Resolution |
128Pixels(Width) ¡Á128Pixels(Height) |
| Total QYT Module Per Cabinet |
2 Modules(Width) ¡Á2 Modules(Height) |
| Cabinet Weight |
2.2kg |
| Cabinet Material |
Steel or aluminum or Magnesium |
| Power |
Input Voltage |
100-240V AC, 50/60Hz |
| Max Power Consumption |
1200 Watt/m2 |
| Avg. Power Consumption |
600 Watt/m2 |
| Viewing |
Brightness |
~1000cd/m2 |
| Brightness Uniformity |
Luminance Discrepancy < 5% |
| Colors |
16777216 |
| Grey Scale(Level) |
4096 |
| Slot Between Neighboring Modules |
< 1 mm |
| Best Viewing Angle |
Horizontal:160¡ã,Vertical:160¡ã |
| Viewing Distance |
2- 300 meters |
| Ambint Conditions |
Temperature Range |
Storage:-40deg. to +85deg.; Working:-20deg. to +60deg |
| Operating Humidity |
10%90%RH |
| Ingression Protection Grade |
Front |
| Processing |
Scanning Mode |
1/16Scan |
| Refresh Frequency |
1920Hz 3840Hz |
| Signal Input |
DVI, Composite Video for Live Video |
| Supported Networking |
Through LAN/WAN, RS 232/RS485 |
| Other |
Life Span |
50,000 - 100 |
