Name£º Indoor P1.875 SMD1515 240X240
Detailed£º

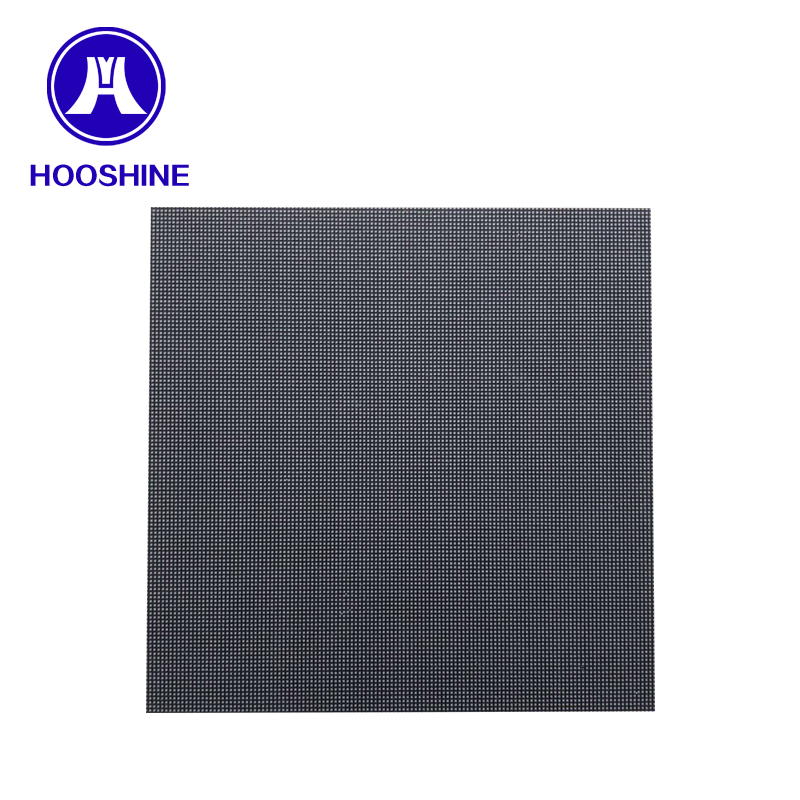

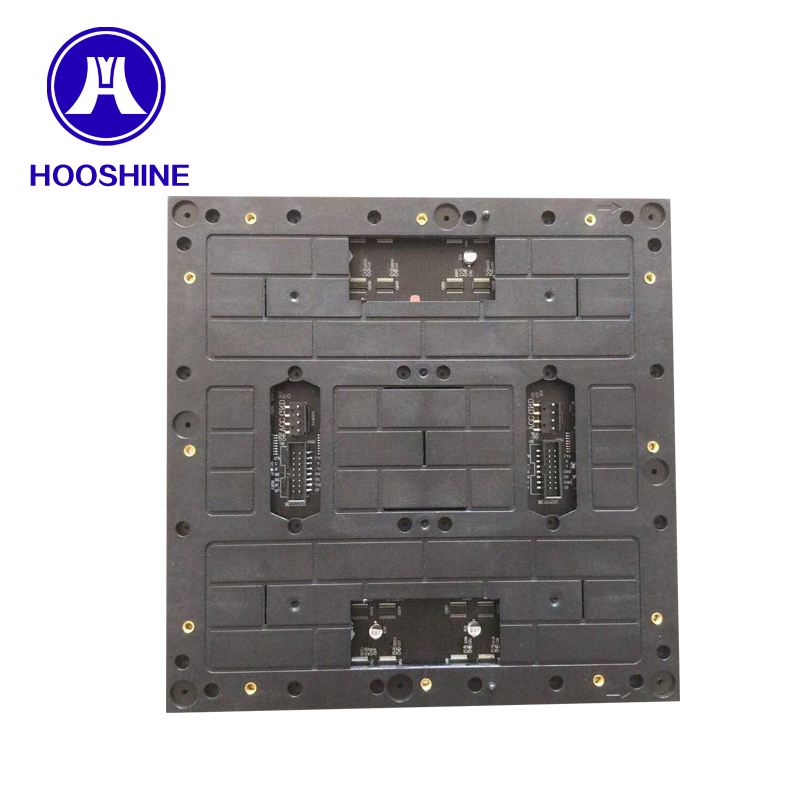

indoor full color P1.875 SMD1515 led module
Pixel Information Pixel Pitch  1.875mm
Technology SMD1515
Pixel Density 284444 Pixels/m2
 Pixel Configuration 1R1G1B
LED Module Module Size 240 mm (Width) ¡Á 240mm(Height)
Module Resolution 128 pixels(Width) ¡Á 128 pixels(Height)

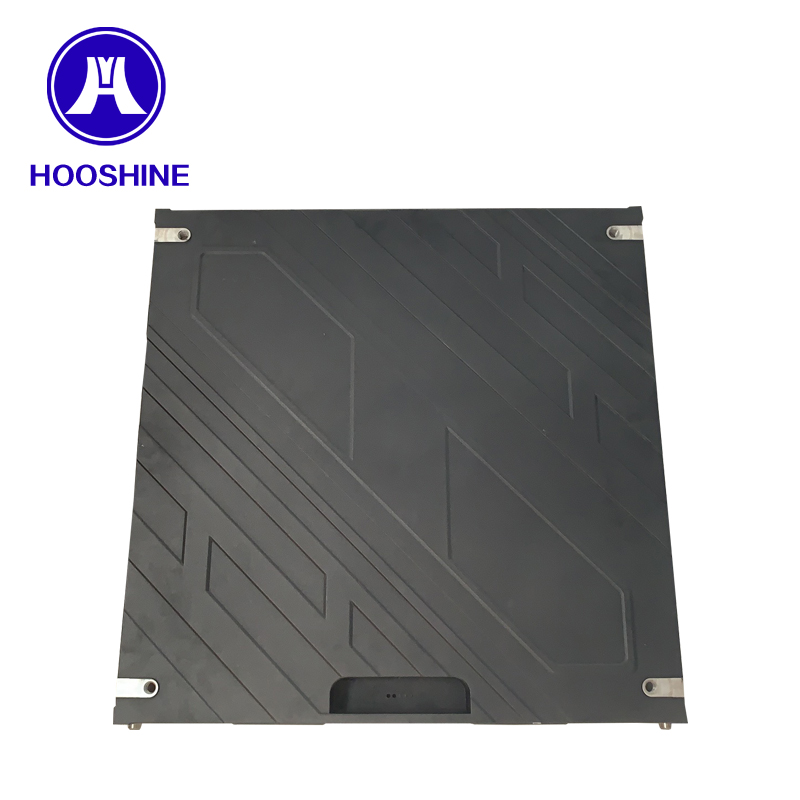

LED Cabinet Cabinet Size 480mm(Width) ¡Á 480 mm(Height)
Cabinet Resolution 256Pixels(Width) ¡Á256Pixels(Height)
Total QYT Module Per Cabinet 2 Modules(Width) ¡Á2 Modules(Height)
Cabinet Weight 2.2kg
Cabinet Material Steel or aluminum or  Magnesium
Power Input Voltage 100-240V AC, 50/60Hz
Max Power Consumption 1200 Watt/m2
Avg. Power Consumption 600  Watt/m2
Viewing Brightness ~1000cd/m2
Brightness Uniformity Luminance Discrepancy < 5%
Colors 16777216
Grey Scale(Level) 4096
Slot Between Neighboring Modules < 1 mm
Best Viewing Angle Horizontal:160¡ã,Vertical:160¡ã
Viewing Distance  2- 300 meters
Ambint Conditions Temperature Range  Storage:-40deg. to +85deg.; Working:-20deg. to +60deg
Operating Humidity 10%90%RH
Ingression Protection Grade Front
Processing Scanning Mode 1/32Scan
Refresh Frequency
3840HZ
Signal Input DVI, Composite Video for Live Video
Supported Networking Through LAN/WAN, RS 232/RS485
Other Life Span 50,000 - 100
